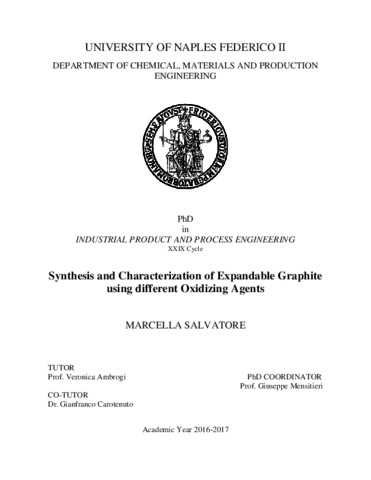

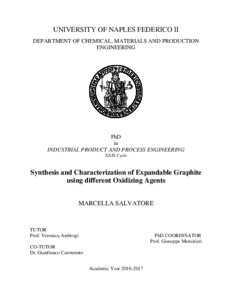

Salvatore, Marcella (2017) Synthesis and Characterization of Expandable Graphite using different Oxidizing Agents. [Tesi di dottorato]

[thumbnail of Salvatore_Marcella_XXIX_ciclo.pdf]
Preview
Text
Salvatore_Marcella_XXIX_ciclo.pdf

Download (18MB) | Preview
Item Type: Tesi di dottorato
Resource language: English
Title: Synthesis and Characterization of Expandable Graphite using different Oxidizing Agents
Creators:
Creators
Email
Salvatore, Marcella
marcella.salvatore@unina.it
Date: 9 April 2017
Number of Pages: 134
Institution: Università degli Studi di Napoli Federico II
Department: Ingegneria Chimica, dei Materiali e della Produzione Industriale
Dottorato: Ingegneria dei prodotti e dei processi industriali
Ciclo di dottorato: 29
Coordinatore del Corso di dottorato:
nome
email
Mensitieri, Giuseppe
mensitie@unina.it
Tutor:
nome
email
Ambrogi, Veronica
UNSPECIFIED
Date: 9 April 2017
Number of Pages: 134
Keywords: Graphite intercalation compounds; Graphite bisulfate; Micro-Raman spectroscopy
Settori scientifico-disciplinari del MIUR: Area 09 - Ingegneria industriale e dell'informazione > ING-IND/22 - Scienza e tecnologia dei materiali
Date Deposited: 25 Apr 2017 17:16
Last Modified: 08 Mar 2018 14:21
URI: http://www.fedoa.unina.it/id/eprint/11674
DOI: 10.6093/UNINA/FEDOA/11674

Collection description

Graphite intercalation compounds (GIC), i.e., graphite flakes embedding small molecules or ions, have been described in the literature since 1851 by Schafheutl. These extraordinary materials can be exploited for a number of technological applications, in different industrial �elds (for example, they have been used for the industrial preparation of expanded graphite, novel superconductors, catalysts, anode materials, etc.). Some GICs (e.g., graphite nitrate and graphite bisulfate) are able to expand remarkably by thermal heating, and the achieved expanded graphite can be used to prepare graphite nanoplatelets (GNP), Few Layer Graphene (FLG), and graphene monolayer. Here an expandable graphite (graphite bisulfate) is prepared by intercalation of graphite with sulfuric acid, in presence of an oxidizing agent. In this study, different chemical formulations for the synthesis of highly intercalated graphite bisulfate have been tested. In particular, nitric acid, potassium nitrate, potassium dichromate, potassium permanganate, sodium periodate, sodium chlorate, and hydrogen peroxide have been used in this synthesis scheme as the auxiliary reagent (oxidizing agent). The intercalation reaction was performed in a glass-flask reactor (placed in a thermostatic bath), using air bubbling as homogenizing approach. The reaction time always was 1h and the H2SO4: oxidizing agent ratio was 9 : 1 by volume for all reactive mixtures. Graphite flakes were placed in the glass reactor and then the oxidizing compound, dissolved in absolute H2SO4, was added. The reactions were stopped by adding deionized water to the systems. In order to evaluate the presence of delamination, and pre-expansion phenomena, and the achieved intercalation degree in the prepared samples, the obtained graphite intercalation compounds have been characterized by scanning electron microscopy (SEM), transmission electron microscopy (TEM), X-ray powder diffraction (XRD), infrared spectroscopy (FT-IR), micro-Raman spectroscopy (µ=RS) and thermal analysis (TGA). Delamination and pre-expansion phenomena were observed only for nitric acid, potassium dichromate and hydrogen peroxide, while the presence of strong oxidizers (KMnO4; NaIO4) led to stable graphite intercalation compounds. The largest content of intercalated bisulfate is achieved in the GICs obtained from NaIO4 and NaClO3.
