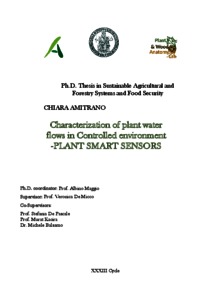

Amitrano, Chiara
(2021)
Characterization of plant water
flows in Controlled environment
-PLANT SMART SENSORS.
[Tesi di dottorato]
Item Type: |
Tesi di dottorato
|
Resource language: |
English |
Title: |
Characterization of plant water
flows in Controlled environment
-PLANT SMART SENSORS |
Creators: |
Creators | Email |
---|
Amitrano, Chiara | chiara.amitrano@unina.it |
|
Date: |
12 July 2021 |
Number of Pages: |
239 |
Institution: |
Università degli Studi di Napoli Federico II |
Department: |
Agraria |
Dottorato: |
Sustainable agricultural and forestry systems and food security |
Ciclo di dottorato: |
33 |
Coordinatore del Corso di dottorato: |
nome | email |
---|
Maggio, Albino | almaggio@unina.it |
|
Tutor: |
nome | email |
---|
De Micco, Veronica | UNSPECIFIED |
|
Date: |
12 July 2021 |
Number of Pages: |
239 |
Keywords: |
controlled environment agriculture, water use efficiency, stomatal traits, vein traits, plant anatomy, morpho-physiological traits, short-term acclimation, VPD, relative humidity, plant-environment interaction. |
Settori scientifico-disciplinari del MIUR: |
Area 05 - Scienze biologiche > BIO/03 - Botanica ambientale e applicata |
[error in script]
[error in script]
Date Deposited: |
22 Jul 2021 07:53 |
Last Modified: |
07 Jun 2023 10:42 |
URI: |
http://www.fedoa.unina.it/id/eprint/13657 |
Collection description
The present thesis project "Characterization of water flows in Controlled Environment -PLANT
SMART SENSORS" has a multidisciplinary core and aimed towards the creation of synergies
between the world of scientific research and the industry. By applying research results to
technological development, this research targeted at innovation in the Agrotechnology and
Aerospace sectors. Indeed, the introduction of new technologies is pivotal for controlled environment
production on Earth to feed a growing population as well as for human permanence in Space in longterm missions where plants are used to regenerate resources (e.g. oxygen, water) and as source of
fresh high-nutritious food. The realization of these systems must be based on a precise knowledge
of plant morpho-anatomical development and its physiological behavior in closed growth systems,
which are strongly influenced by numerous environmental factors including the relative humidity or
more specifically the Vapour Pressure Deficit (VPD). In a protected environment (e.g. in Space
greenhouses, vertical farm, indoor growing-modules), the control of relative humidity represents a
significant problem, which has often been neglected. For instance, in conditions of poor aeration, too
high humidity can occur with consequent low values of VPD which reduces the plant transpiration,
slowing or stopping the water flow through the SPAC (Soil-plant-atmosphere-continuum), and
ultimately blocking the photosynthesis, yield and biomass production.
Even though there have been many studies regarding the VPD control, alone and/or in combination
with other environmental factors, certain points are still unclear or controversial, providing contrasting
results in different or even in the same species. This happens mainly due to the complex interactions
between many microclimatic factors and plant physiological behaviour at different phenological
stages.
In a context of climate change, the efficient regulation of VPD can be applied to greenhouse and
indoor-module production in order to enhance crop productivity, improve WUE and reduce total water
consumption to design irrigation strategies, considering the balance between the amount of water
saved and the quantity used to regulate the VPD.
The regulation of the VPD and related environmental parameters need to be designed according to
the species and its adaptive plasticity at morphophysiological levels. Thus, the characterization and
modeling of water flows in model plants in different growth chamber scenarios (from small modules
intended for the spatialization for Space applications, up to structures that can be used in protected
cultivation on Earth), as well as the real-time monitoring of the water status of plants, become
fundamental for the management of precision agriculture both in support of Space exploration and
for the sustainability of urban agriculture. To date, most of the research has focused on either specific
physiological/structural aspect at the single-plant level, or on cultivation management or even on
technological aspects, with only a few interlinks of knowledge.
The aim of this thesis is to develop knowledge to help filling this gap to improve the understanding
of VPD effects on crop productivity, with the creation of synergies among different expertise (e.g.,
plant physiology, crop science, engineering). To do so, it is fundamental to study the complexity of
plant morpho/physiological responses, since without a deep knowledge of mechanisms behind plant
responses to the environment it is difficult to determine how and to which extent plants can adapt to
any changes in the environmental conditions.
The application of a multidisciplinary approach in research will allow crop production in a sustainable
way, even in harsh environments, where a "climate smart-agriculture" becomes necessary to
improve crop yield and quality. The present thesis is organized as follows:
Chapter 1 is a review which presents the current state of knowledge on how VPD influences plant
morpho-physiological traits in controlled environment agriculture. The study has been published as
a review article in Annals of Applied Biology (Amitrano et al., 2019 https://doi.org/10.1111/aab.12544). It
covers main important aspects of VPD influence on plant growth, morpho-anatomical development,
and physiology, emphasizing the possible interaction between VPD and other microclimatic factors
in protected cultivation. Furthermore, the rewiew identifies and discusses future research areas,
which should be explored further, based on needed synergies among different expertise from
biological and horticultural fields.
Chapter 2 presents evidence that the modulation of relative humidity (RH) together with other
important cultivation factors such as light (presence/absence), can influence morpho-anatomical
development and improve antioxidant content, even at the early stages of plant life cycle
(germination, seedling establishment). The combined effect of RH and light was studied during the
germination and seedling development of Vigna radiata L. (mung bean), a species widespread
throughout the world also due to the high nutritional value of its edible sprouts. A manuscript reporting
these data has been published in Plants (Amitrano et al., 2020a https://doi.org/10.3390/plants9091093).
In Chapter 3, the role of leaf anatomical traits (e.g. leaf mesophyll features, stomata and vein traits)
in photosynthetic acclimation to short- and long-term changes in VPD was examined in Vigna radiata
L. adult plants. In this study, we underlined the key role of leaf structure
in photosynthetic acclimation to air VPD. The long-term exposure to different VPD levels determined
a pre-acclimation at the leaf morpho-anatomical level which influenced the extent of leaf
physiological plasticity, changing plant ability to acclimate to any changes in the surrounding
microclimate. This different leaf anatomy-related capacity of pre-acclimating becomes
therefore fundamental in the present climate-change scenario due to its key role in the adaptation
process under changing environmental conditions. A manuscript reporting these data has been
published in Environmental and Experimental Botany (Amitrano et al., 2021a
https://doi.org/10.1016/j.envexpbot.2021.104453).
In Chapter 4, the effect of VPD on morpho-physiological traits also incorporating the trade-off
between transpiration and carbon gain was evaluated in two cultivars of Salanova lettuce (Lactuca
sativa L.) with green and red leaves, in a growth-chamber experiment. Low-VPD turned
out to significantly improve growth, stomata development and hydraulic-related traits which led to
higher photosynthesis and a reduced water consumption compared to the high-VPD condition. A
manuscript reporting these data was published in Agronomy (Amitrano et al., 2021b
https://doi.org/10.3390/agronomy11071396).
Chapter 5 represents a clear interlink of knowledge between plant scientists, engineers,
mathematician and modelists. In this study, published in Sensors (Amitrano et al., 2020b
https://doi.org/10.3390/s20113110), we used experimental data, based on morpho-anatomical analyses
of lettuce plants, to run the Energy Cascade Model (MEC), a model already used to predict biomass
production and photosynthetic efficiency in advanced life support systems studies (Space-oriented
research). Here, the modification of the model is discussed together with possible improvements and
applications.
Chapter 6 focuses on how to modulate the micro-environment, and in particular the VPD levels, in
protected cultivation to improve plant antioxidant content in crops. More specifically, the exposure of
the same lettuce cultivars mentioned in previous chapters to high VPD determined an improved
phytochemical content in lettuce leaves, especially in the red cultivar. Here we discussed a further
possibility to use short-term high VPD treatments as a mild stress to boost the phytochemical
production in lettuce plants. A Manuscript reporting these data has been published in Horticulturae
(Amitrano et al., 2021c http://doi.org/10.3390/horticulturae7020032).
Chapter 7 is a deep focus on how the VPD drives the coordination among morpho-anatomical traits
in leaves of the above-mentioned lettuce cultivars, also exploring the variability of traits along the
leaf lamina. More specifically, the attention is focused on how stomata and vein develop within
lettuce leaves and how these traits are coordinated with leaf size under different VPDs. Results from
this study suggest that VPD triggers a different response in lettuce plants in terms of balance of leaf
4
traits and highlight the possibility of further exploring the microenvironment (combined influence of
light and VPD) to adjust the development of stomata and vein densities, thus providing optimal water
and gas fluxes through the leaves.
In Chapter 8, the experiments conducted during the period spent at the Controlled Environment
Agriculture Center of the University of Arizona (UA-CEAC) are reported. The experiments reported
here were conducted on the same species of the previous chapters (Salanvoa lettuce with green
and red leaves) in a multi-layer vertical farm to test the interaction between VPD and other
microclimatic factors on plant morpho-physiological development. More specifically two experimental
trials are reported (E1 and E2). In E1, the interaction between VPD levels (low and high) and
increasing DLI (Daily Light Integral - 8.6, 12.9, 15.5) was tested to study morpho-physiological
changes and to determine the optimal combination of DLI and VPD for lettuce growth. In E2, a
sudden salt stress was applied to the cultivation and then CO2 enrichment was provided, based on
the hypothesis that the CO2 enrichment would mitigate the salt stress, modifying the plant carbon
gain/water balance. We evaluated whether the mechanisms of salt stress mitigation due to CO2
enrichment were different under high and low VPD conditions, depending on the different morphoanatomical leaf structure.
Chapter 9 reports on experiments conducted at the IPK-Leibniz institute of plant genetics and crop
plant research (Gatersleeben, Germany) in the framework of the EPPN2020 transnational access
(https://eppn2020.plant-phenotyping.eu/EPPN_Transnational_Access). A report with obtained results is
showed in this chapter. These experiments concern the application of high-throughput phenotyping
combined with morpho-anatomical analyses on Salanova green and red plants acclimated to a VPD
level and then subjected to short-term changes in the VPD. The project submitted to the EPPN
transnational access and winner of the grant is presented in Appendix 1.
Chapter 10 and 11 report on the possible industrial applications after the collaboration with the
partner company "Kayser Italia srl" (http://www.kayser.it/). Chapter 10 is a study for the definition of
scientific and technical requirements for the realization of a miniaturized phenotyping growth
chamber to grow microgreens or small crops in Space. The structure of the chamber is based on the
"Kubik" incubator, an incubator facility of the European Space Agency with the shape of a cube of
about 40 cm that has been operating aboard the International Space Station for more than 12 years,
carrying different life science experiments. In the chapter, technical and scientific requirements are
listed and a preliminary schedule for the project realization is provided. At the end of the chapter,
open issues are also discussed. In Chapter 11, the set-up of a prototype miniaturized cultivation
chamber for use in Space is described and the results of validation tests, carried out at Kayser Italia
with brassica microgreens (Brassica rapa subsp. sylvestris var. esculenta) under different air relative
humidities (VPD), are reported.
In Appendix 1, the project submitted to the EPPN transnational access (PHEW- Automated
phenotyping platform to improve lettuce water use efficiency under different VPD and watering
regimens) and winner of the grant is presented.
In Appendix 2, a brief recap on the activities conducted during the Ph.D. program is presented.
